Similar to other genuine SiO₂-based coatings, Q² Rim offers superb self-cleaning abilities, reducing the time required to maintain wheels, especially those with intricate patterns, in impeccable cleanliness. It shields against excessive dust from brake pads depositing on wheel rims and facilitates easy cleaning with pressurized clean water. Additionally, using a pH-neutral rim cleaning product further streamlines the entire maintenance process. Unlike conventional rim protection solutions, Q² Rim is also resistant to more aggressive cleaners.
CONSUMPTION: 15ml / set TEMPERATURE RESISTANCE: >800'C PH TOLERANCE: 2-11 DURABILITY: 12 ~ 24 months / 30k km
BEST PRACTICES & PRO-TIPS
Q² Rim requires just one thick layer; however, if you wish to enhance its durability, the product can be layered. Maintain a minimum 4-hour interval between layers. The coating can be applied to rims with various finishes, including both glossy and matte surfaces.
Tip: Apply Q² Rim in sections. Its fast-drying and curing formula means that large, complexly shaped rims should be divided into numerous smaller sections.
Iron Cleaner
Preparation is key to proper coating adhesion. Use GYEON Iron Remover to thoroughly clean and prep the surface.
Wheels, following the engine bay, brake calipers, and exhausts, are the components most exposed to high temperatures. Q² Rim exhibits an endurance capability that exceeds 800ºC without compromising its original properties. The exclusive dedication of this ceramic coating to rims is an asset and introduces a new level of quality within the realm of rim protection.
Scroll down for detailer reviews and FAQs.

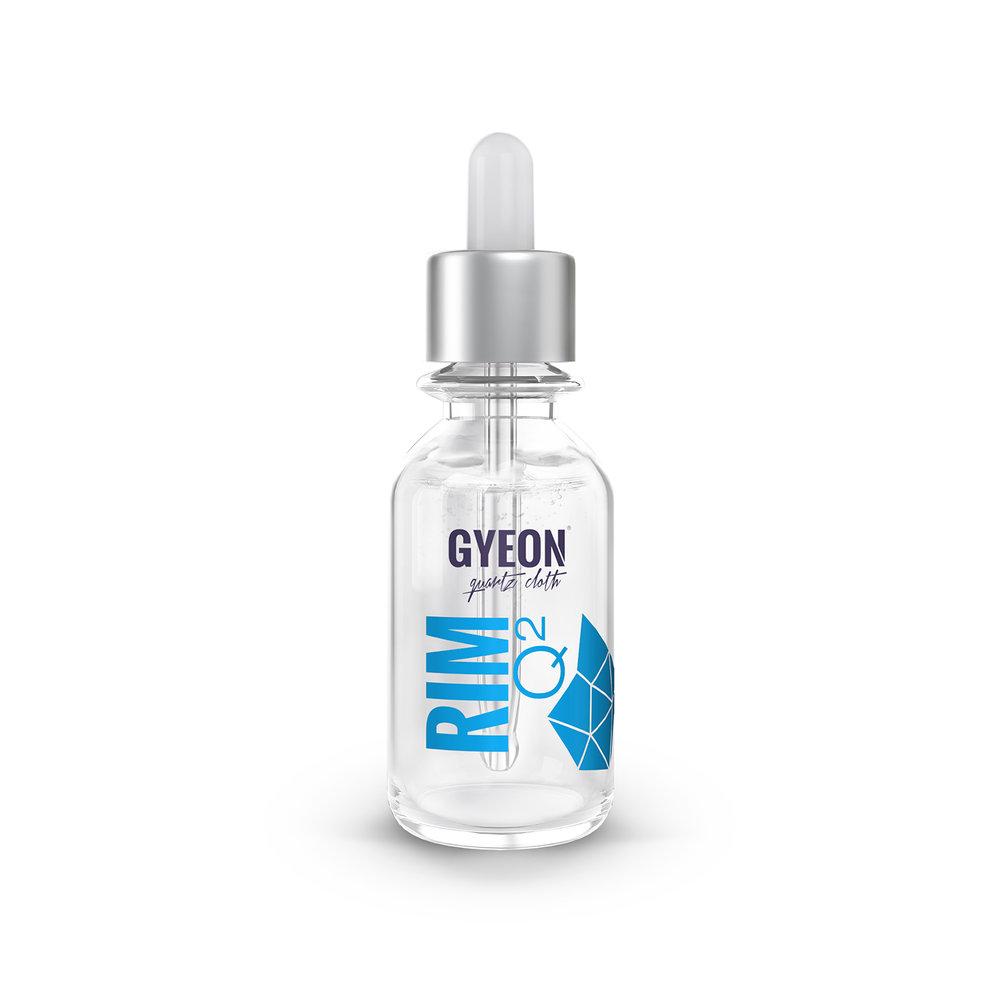

GYEON Rim Ceramic Coating 30ml
Best 9H Ceramic Coating for Wheels, Rims, Brake Calipers and Exhaust. Resists High Temp.
There are various wheel rim types available on the market, e.g. wet painted, powder coated, anodized or polished. Q² Rim is an appropriate product to secure each and every one of them. Even the owners of models with polished lips have registered that the need to refresh the so-called mirror effect, in comparison with other rim protective products, is significantly less frequent. After taking a look at the Maintenance Guide above, Read GYEON's Quick Guide to Ceramic Coatings here.
Similar to other genuine SiO2-based coatings, Q² Rim offers superb self-cleaning abilities. It results in limiting the time needed to keep wheels, especially those with complicated patterns, impeccably clean. It protects against too much dust from brake pads being deposited on wheel rims and facilitates regular washing of rims with clean water under pressure. Using, additionally, a pH-neutral rim cleaning product will make the whole maintenance process easier. Q² Rim, unlike other conventional rim protection solutions, is also resistant to more aggressive cleaners.
TEMPERATURE RESISTANT
Wheels, just after the engine bay and exhausts, are the components that are most exposed to high temperatures. Q² Rim has an endurance capability exceeding 800 degrees Celsius without any damage to its original properties. The fact that this quartz coating is dedicated exclusively to rims is an asset and introduces a new level of quality within the field of rim protection, particularly when compared with conventional, synthetic wax-based products.
ADVICE ON APPLICATION AND PRECAUTIONS
Before you start applying, wash and degrease the surface with a strong degreasing agent (Q²M Iron is recommended). If additional impurities are visible, use Q²M Clay to remove them. Skin protection recommended. Work in a well-ventilated area. Store in a dark, dry and cool place. Keep out of reach of children. Avoid applying in direct sunlight.

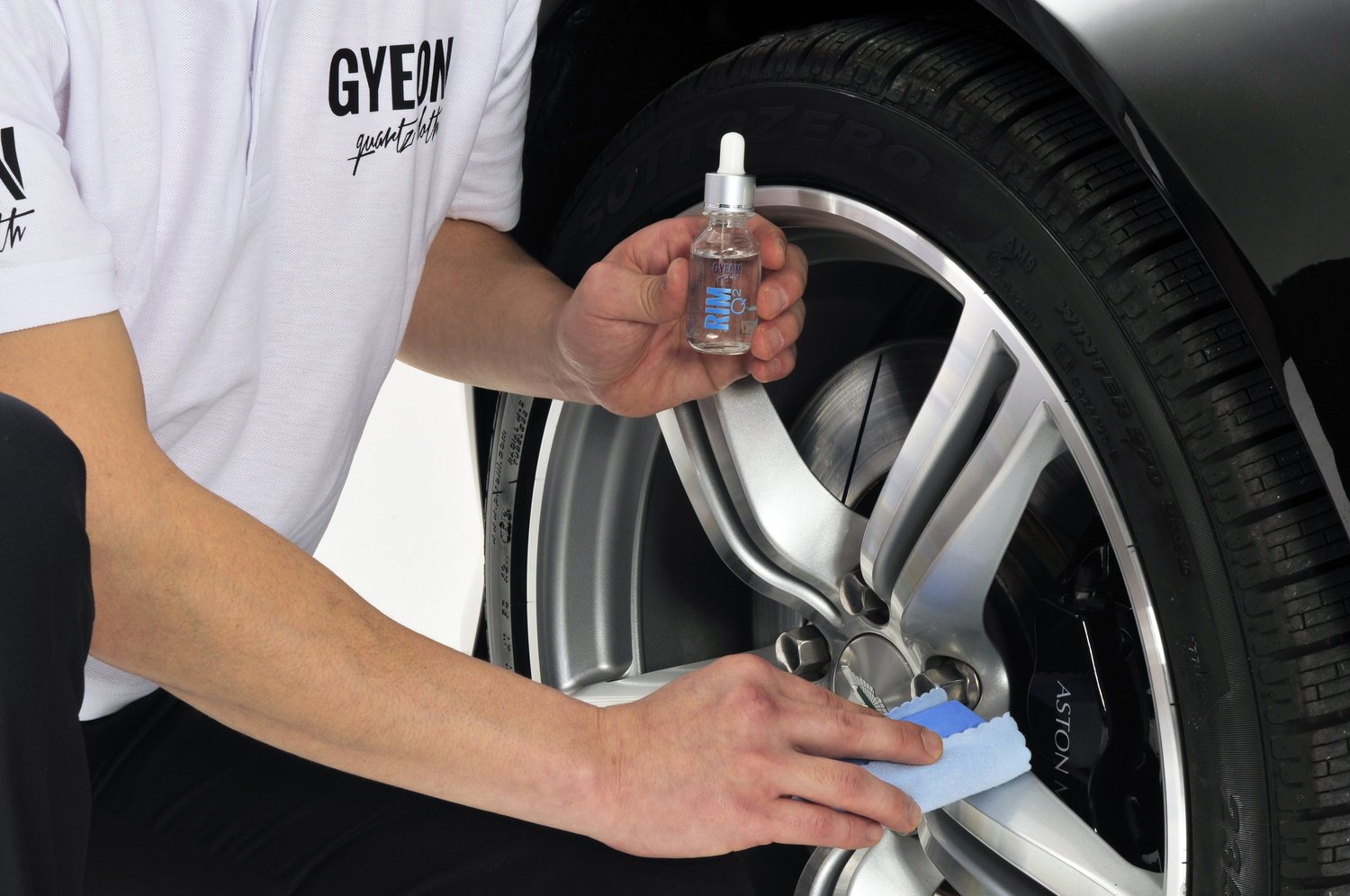

Consider if you've already clayed, ironed, and prepped the wheel; the next steps are fairly easy. It's a simple apply and wipe off process. GYEON Rim reacts and adheres quickly, eliminating the need to let the product sit for 5 minutes before wiping off. Simply work in small sections and casually wipe it off as you go.
All GYEON coatings can be applied outdoors. Ensure stable conditions, never use in direct sunlight and check the weather forecast!
Brake calipers, wheels, chrome, aluminum, powder coat—all okay. While some paint coatings can be applied to wheels, GYEON Rim is formulated to adhere to different types of surfaces with varying surface porosity, ensuring longer-lasting protection in high-wear areas.
GYEON Rim FAQs
This depends on several factors. On high-wear areas such as wheels, brake calipers, and exhausts, GYEON Rim can last at least around one year, and this duration can be extended to two years with multi-layers. Further extension is possible with proper maintenance using GYEON WetCoat.
No, but it will enhance the matte finish to a richer appearance, similar to applying lotion on dry hands. GYEON Rim is fully matte compatible.

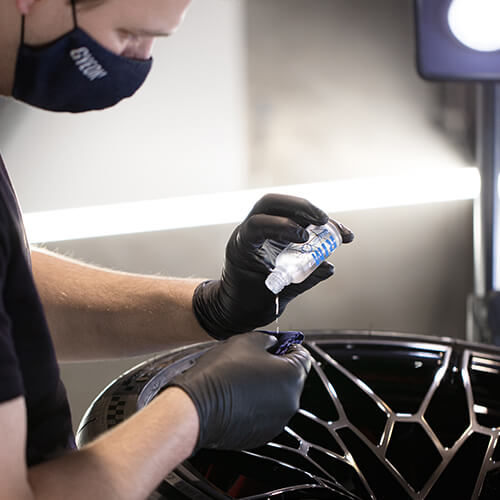

Work in small areas, tackling 2 to 4 spokes at a time, and promptly wipe off GYEON Rim right away, no need to wait for it to 'flash'.
Layering time is between 1 to 4 hours, and full curing occurs within 48 hours. You can take the vehicle out after 12 hours.
30ml will be sufficient to cover a set of four typical 19" x 9" wheels with two coats. Or 8 rims.
It can be applied using an airbrush for high-complexity wheels.
The vehicle can be driven the next day, or approximately 12 hours later. It is advisable to avoid exposing the coating to water within the first 24 hours.
A temperature of at least 10°C is recommended, although you can still attempt the application between 5°C to 10°C if necessary. If the temperature reaches 30°C, then it's on the warmer side, and you will need to retreat into the shade.
Either maintain with GYEON WetCoat or Bathe+; both products can be used as often as you like.
High spots refer to dried coatings that were not completely buffed off. If you catch the high spots within 30 minutes, you can use the coating itself again to level/soften the high spots. If it's been a few days, then you'll need to mechanically polish it off or use Gyeon Total Remover to remove and reapply coating on the affected area.
Officially, Gyeon recommends the product to be used within 2 to 3 years when new. If the bottle has been opened, it's best to use up the product in 1 to 2 months to preserve the coating's maximum effectiveness.
No problem at all. Coatings contain a significant amount of solvents and exhibit high chemical stability. For more details regarding winter shipping, please refer to our FAQ section on winter shipping.
GYEON Rim will likely become your motorcycle's best friend, as it can be applied to exhausts and all metal parts. If you have an airbrush, coating the entire motor compartment becomes a breeze.
Rim can also be applied to matte or satin wheels without adding additional 'sheen'. What it does, however, is enrich matte finishes and prevent them from looking too 'chalky'.
