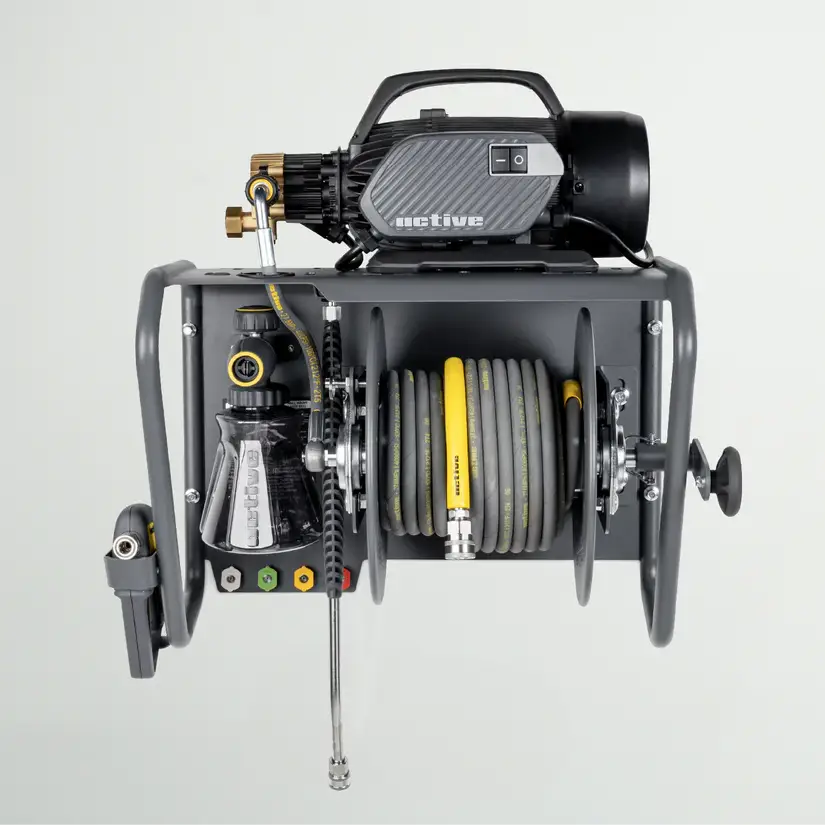

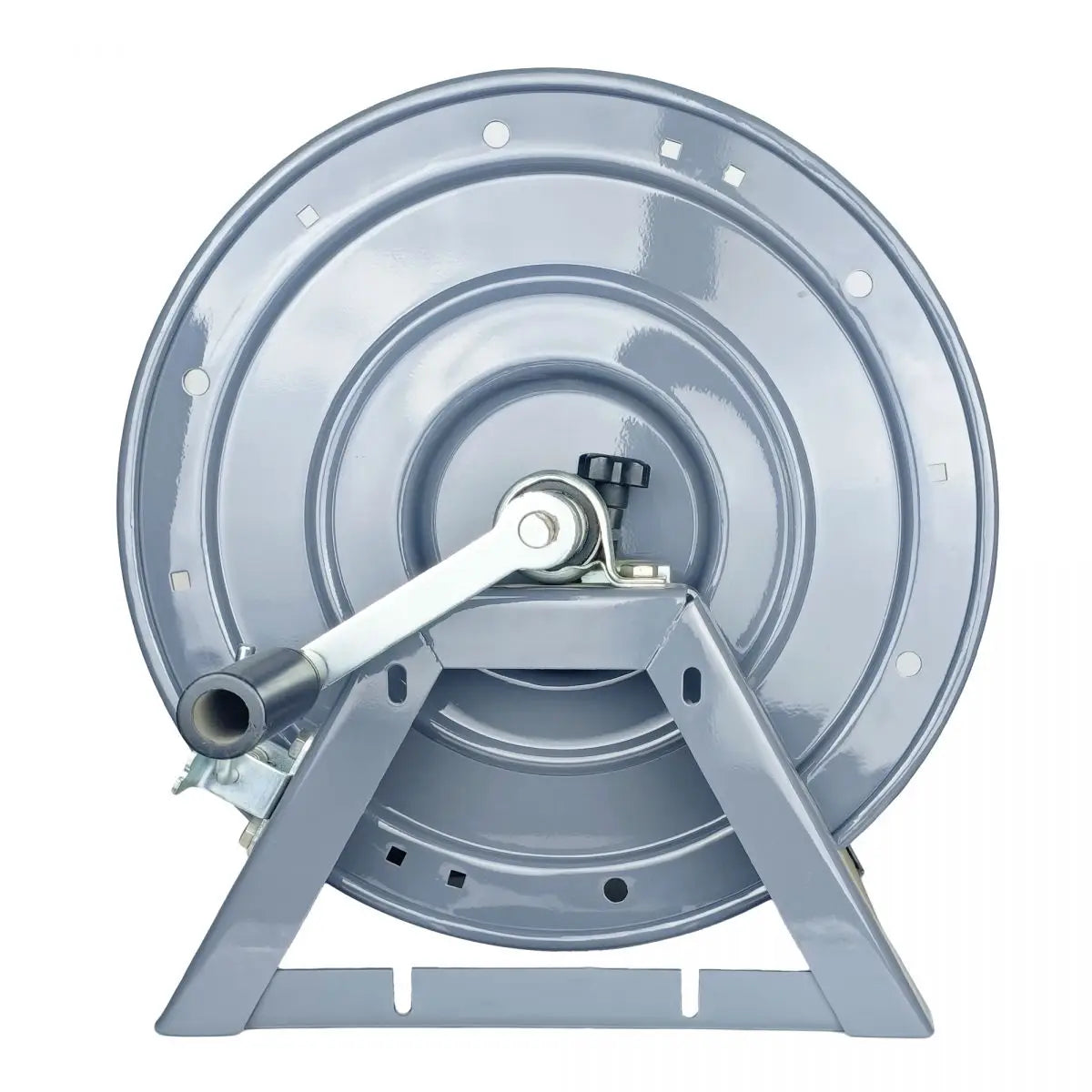

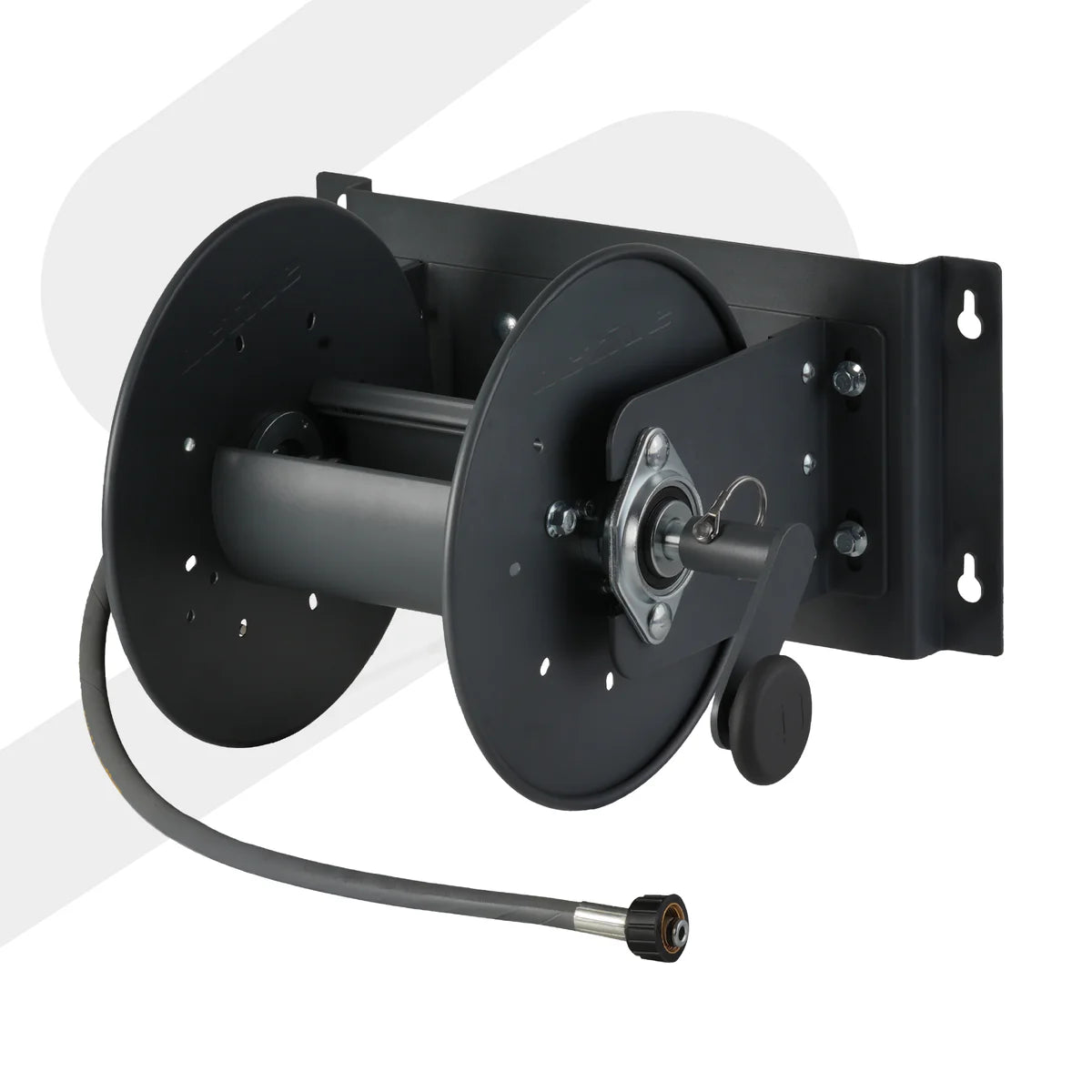

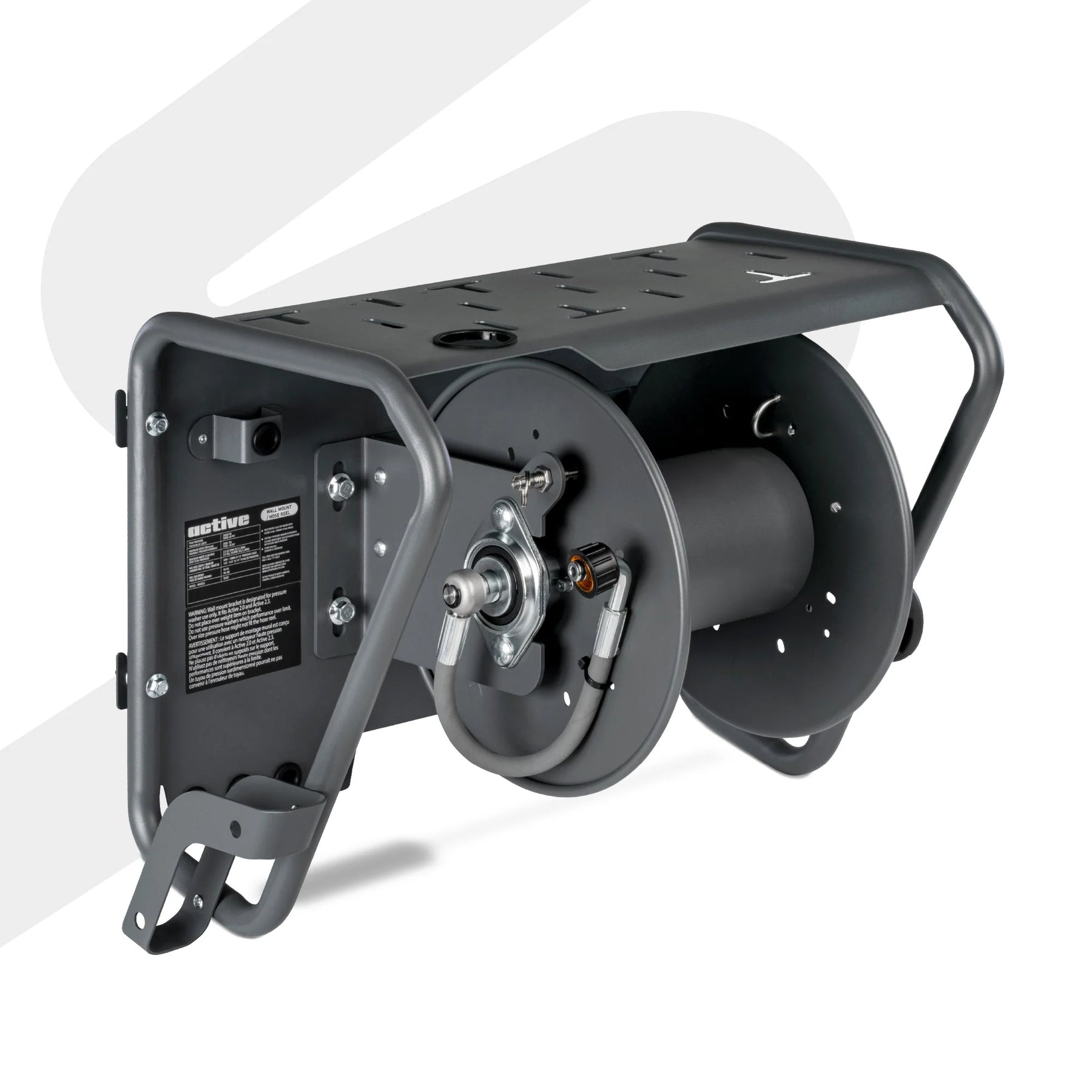

The Active Hose Reel M-Series is designed for pressure washer hoses with a 3/8” female quick connect adapter, supporting up to 100 ft of hose (3/8” or 5/16”). It includes a 2 ft jumper hose with M22-14mm adapter and a 16” stud spacing mounting bracket.

The Active Hose Reel is the first entry in the Active Modular Series, built as a foundational component for creating a customizable pressure washer setup. It is designed to be installed quickly—typically in under 10 minutes—and serves as a key organizational element for detailing setups.

It features a plastic-free, full steel construction, positioning it as a durable storage solution for pressure washer hoses. The system is intended to help users keep their wash setups organized, accessible, and clutter-free, particularly in automotive detailing environments.

Functional Positioning (derived from page structure)

• Part of a modular system ecosystem
• Focus on organization + workflow efficiency
• Designed specifically for detailing / garage setups
• Emphasis on quick install + clean storage

Included / Key Specs

• Supports: up to 100 ft hose (3/8” or 5/16”)
• Compatibility: 3/8” QC system
• Includes:
• 2 ft jumper hose
• M22-14mm adapter
• Wall mounting bracket (16” stud spacing)

What pressure washer hoses can be wound on the hose reel wall solution?

Any diameter pressure hose can be wound (3/8” / 5/16” / 1/4” hoses). The max is 100’ 3/8” hoses. You can wind more for hoses with a smaller ID (internal diameter). The hose end to reel should be a 3/8” male plug to fit the reel.

What is included in the hose reel solution?

The hose reel solution comes with a backing plate with 16” stud spacings, the main frame with a hose reel for a 100’ hose. And a 2ft jumper hose to connect to the pressure washer with an M22-14mm end.

What’s the max rating for the hose reel solution?

The hose reel valves have a max rating of 3000 peak pressure, 2100 PSI operating pressure, and 3.5 GPM max flow rate, within limits for most industrial automotive pressure washers.
