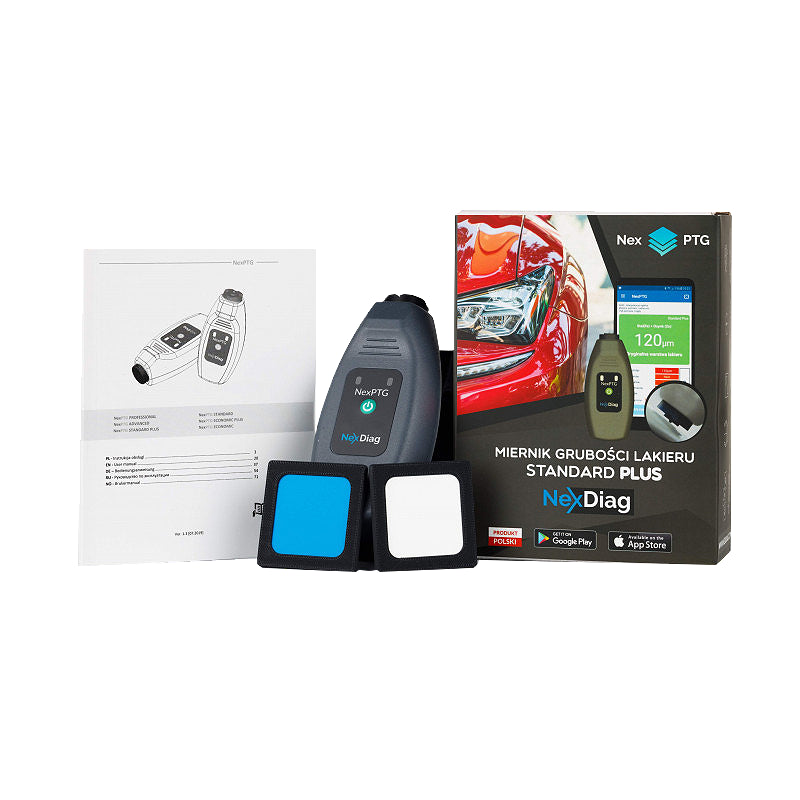

The NexPTG Standard Plus is a basic model of the gauge that enables quick, accurate measurements. It also includes several innovative features to make vehicle examination easier and more efficient. With mobile connectivity, it offers extensive capabilities beyond traditional gauges.

The Standard Plus version allows for effective testing of lacquer coat thickness. The gauge automatically interprets results, providing the user with information on the substrate's current condition.

Professional Software:

NexPTG offers a dedicated app compatible with both iOS and Android devices. This app allows for highly accurate and precise lacquer coat examination. Using the Lacquer Coating Analysis System, you can analyze the lacquer across the entire body in seconds, with the app assisting in interpreting measurement results.

• Testing on the substrate: Steel [Fe]/ Zinc-plated steel [Fe+Zn]/ Aluminum [Al]

• Recognized substrate types: [Fe] / [Fe+Zn] / [Al]

• Range of measurement: 0 - 1000 μm (0 - 39.37 mils)

• Resolution of measurement: 10 μm (0.4 mils)

• Type of probe / End of probe: movable/spherical

• Possible measurement on curvatures (profiled probe housing)

• Measurement memory: up to 300 items

• Wireless transmission: Bluetooth 4.0 LE

• Ambient temperature: -20 ° C to +40 ° C

• SAPL Basic: paint coating analysis system

• Testing relative to reference point

• Supported systems: iOS/ Android
